NZSAT Mini Auto Fully Automatic Satellite Dish

Technical Specifications / Features

Easy to install, all cables & cable entry included.

The NZSAT Mini Auto Fully Automatic Satellite Dish is designed for use with Caravans, Campervans and Motorhomes.
This dish is extremely easy to use, simply turn on and the dish will then automatically find the Optus D1 Satellite in New Zealand.

Mounting Measurements in the gallery.

Make and Model: NZSAT Mini Fully Automatic Satellite Dish
Colour: White

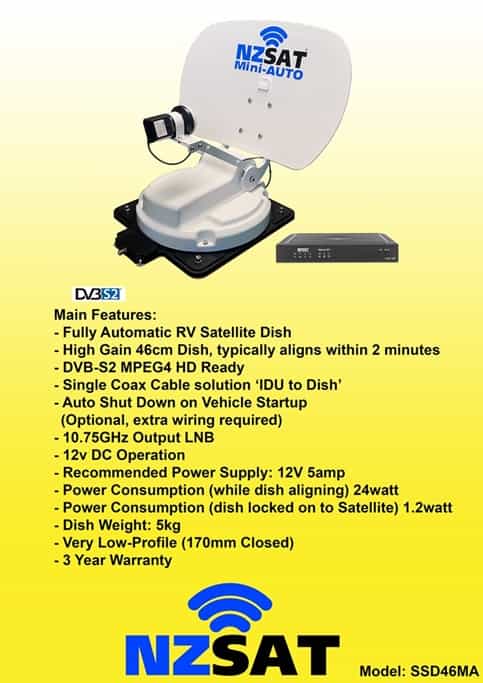

Full List of Main Features:

46cm High Gain Off-Set-dish
LNB type: LO Freq 10.75
DVB-S2 MPEG4 Ready
Frequency band: Ku-band
Single Coax Cable solution
Auto Shut Down on vehicle startup
Power supply: DC 12 Volt, 5A Recommended
Power Consumption (while the dish is aligning) 24watt
Power Consumption (dish locked on to satellite) 1.2watt
Dish reflector size: 460 x 320 mm (W/H)
Unit height when closed 170mm
Unit weight: 5kg
Temperature range: -25° C to +70° C
Polarization: V/H
Elevation (inclination): 15° - 62
Azimuth (rotation): 360
2-axes DC motor

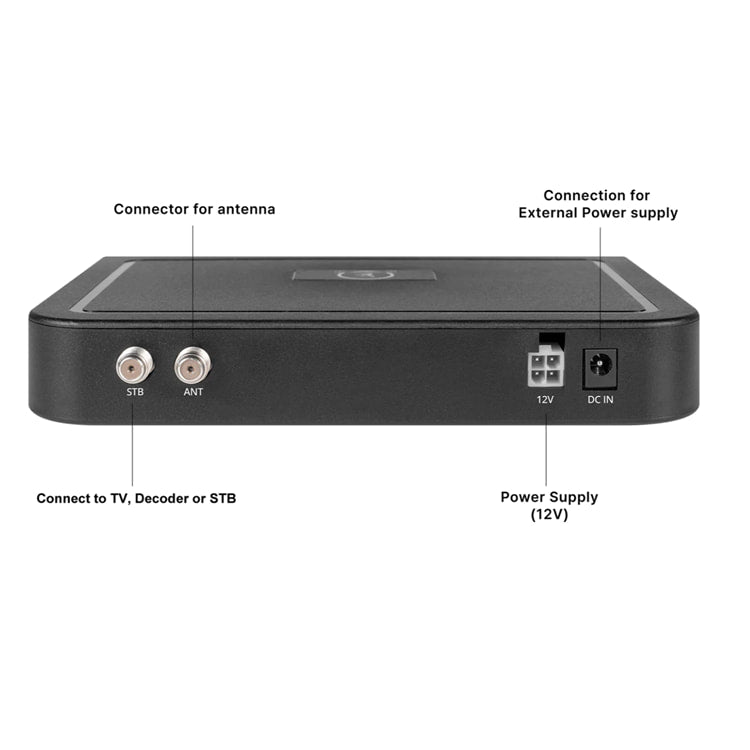

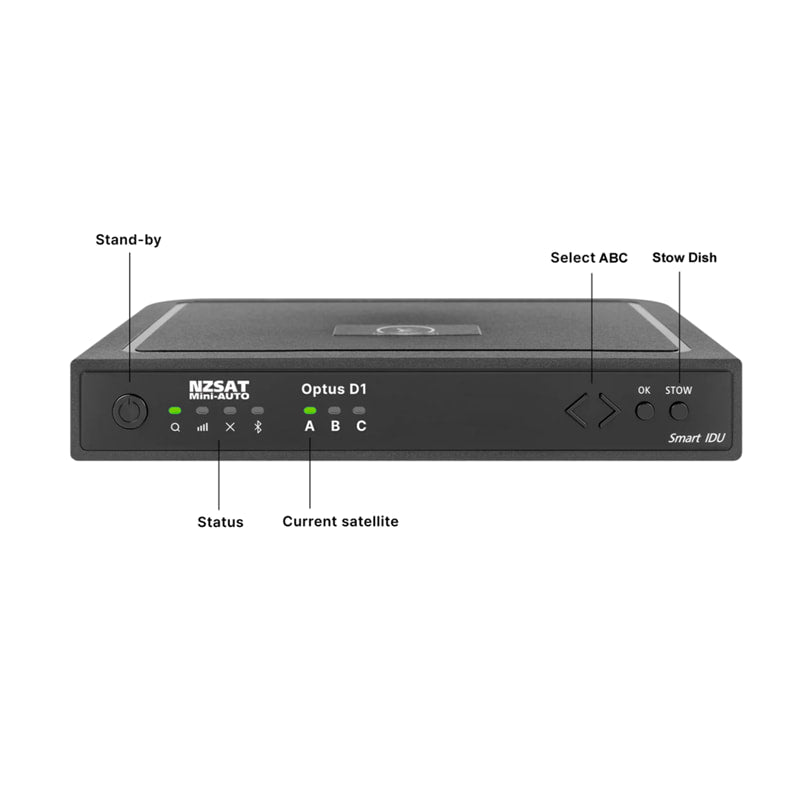

Control unit with Bluetooth® module (Firmware updates via a mobile device)
Free app for iOS and Android
