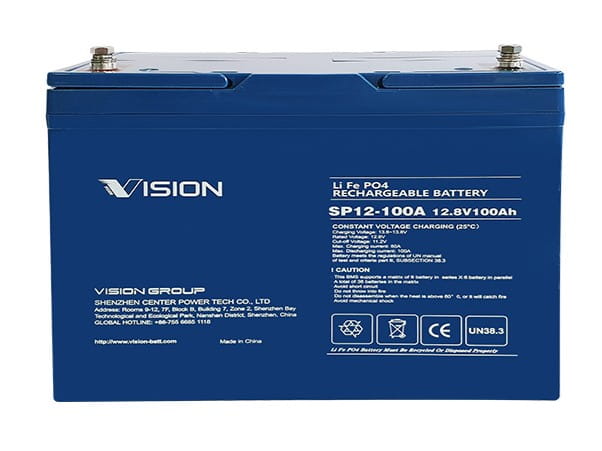

Vision LiFePO4 12V 100AH Lithium Battery

Technical Specifications / Features

*** Instore Pick up only ***
Please get in touch if you would like some couriered.

With greater depth of discharge, power density and lighter weight than lead acid, it’s no wonder that these batteries are becoming the first port of call to those with space constraints.

The V-LFP range sport rugged cases that are fully sealed and maintenance free, concealing safer technology along with the added benefit of an easier recharge thanks to their superior recharge absorption.

Easy to parallel and add to a series and even easier to retrofit into applications with solar charge controllers, these batteries are simply all-rounders that will just keep on cranking.

Make and Model: Vision SP12-100AH

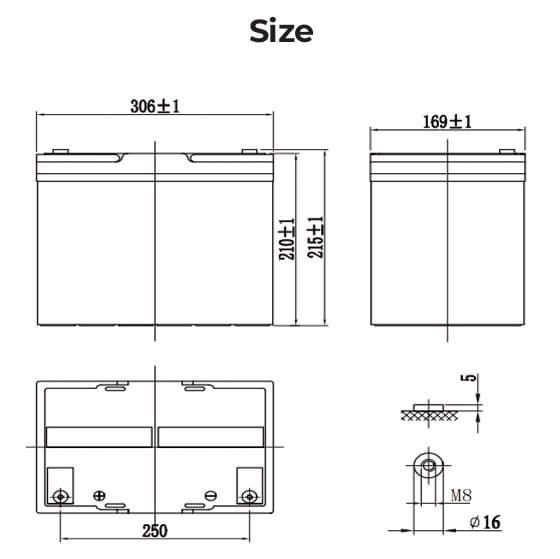

Measurements: WxDxH  306 x 169 x 215mm
Weight: 10.3kg Approx.
Case Material: ABS
Cell Type-Chemistry: Prismatic LiFePO4
Terminal Type: M8
IP Grade: IP65
Recommended Charge Current: 25A
Maximum Charge Current: 50A
Maximum Continuous Discharge Current: 100A
Recommended Charge Voltage: 13.6V-13.8V
Max Charge Voltage: 14.4V-14.6V
Overcharge Protection Voltage: 14.8V-15.2V
Charge Mode: CC/CV
Discharge Cut-Off Voltage Range: 9.2V-11.2V

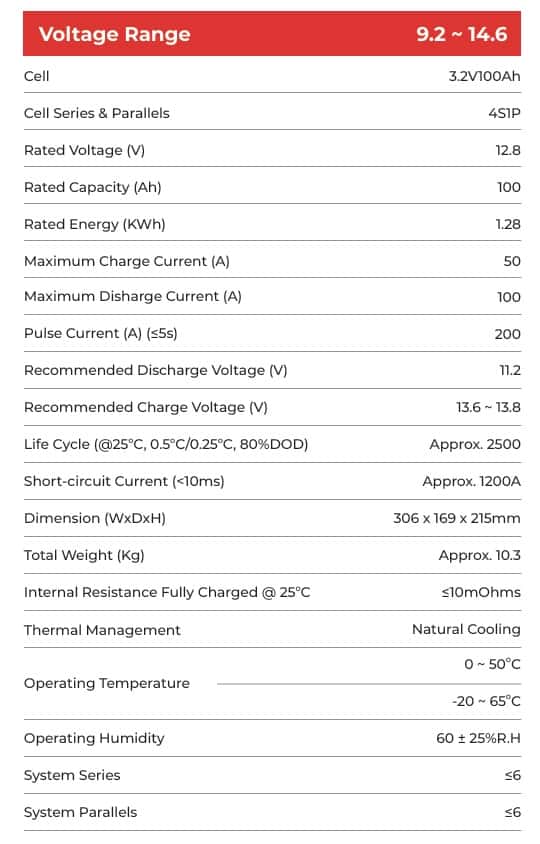

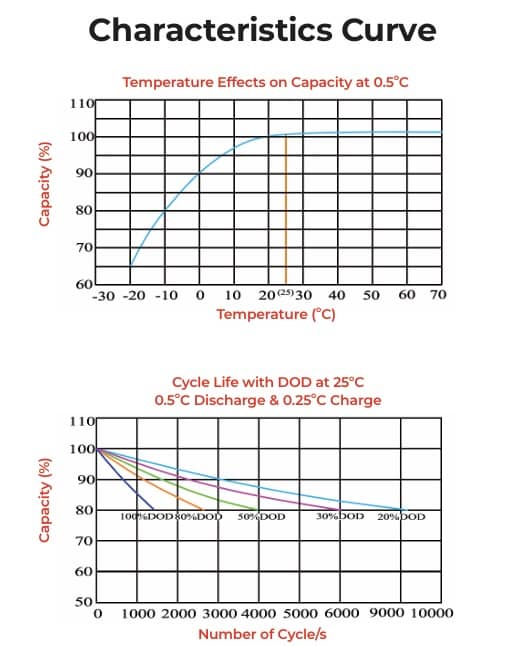

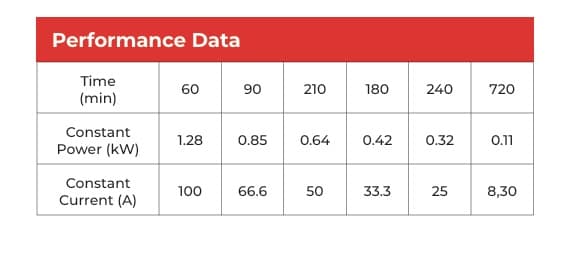

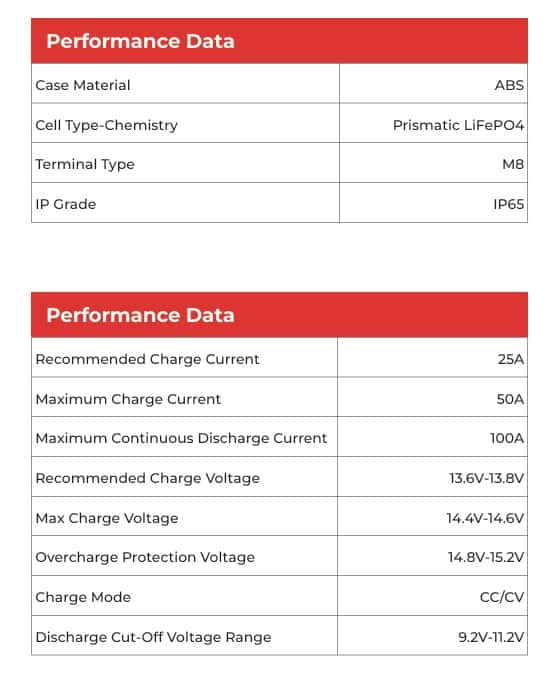

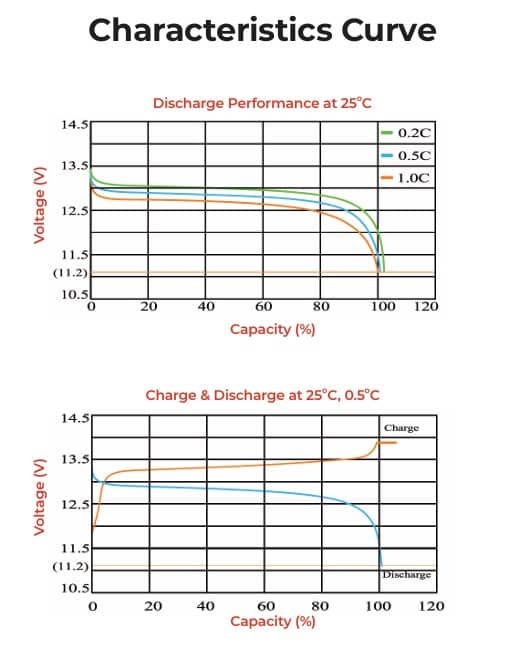

More Specifications in the image gallery.
